PYLA 1.3 : Faster than base material !

Pyla is still evolving, and here is version 1.3, with optimization!

Pyla is not a slow shader. Usually, using it slows down your render time by just 2%.
Indeed, I'm trying to get it faster.

With this new version, your object with Pyla can be rendered faster than just the base shader!

In fact, you have to choose wich layer will appear in secondary reflections (reflects, transparency, indirect lighting...). If you choose the fastest of your shader, base or layer, you can cut your render time by up to 30%.
You can even choose to have a Black Closure (Null closure) for secondary, and you render could up to 60% faster!

Complementary documentation for PYLA 1.3:
MaskLayer = Put here a mask image to have the layer visible just on the white part of the mask.

Secondary_Layer = Secondary Optimization:
0.0 = NO Optimization, use it for maximum photorealism
1.0 = secondary is Base, use this if your Base shader is faster than Layer Shader
2.0 = secondary is Layer, use this if your Layer shader is faster than Base Shader
3.0 = secondary is black (null closure). This is the fatest render, but could do unwanted result in case of readable reflection of the object.

Optimization is very effective if you have complex layers or base shaders. But if all your layers are already fast to render, it would not be a great help (indeed, there is less needs of optimization in this case).

PYLA 1.3 is dowloadable here : PYLA1.3

Physically Correct Shader Update

Back from two weeks far from Internet, I just discover that my Physically Correct shaders don't work anymore with lastest Blender distribution.

So, I corrected them, and now, it's ok!

Just go to Original Post about Physically Correct Shaders to download the latest version.

QUIP and QUIPCam fast FX shaders

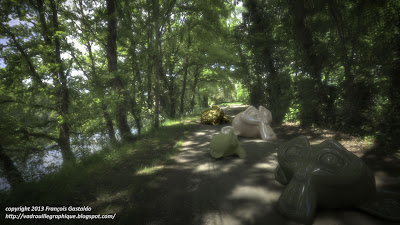

I've made those two OSL shaders to have a fast and easy solution to put my 3D Objects in HDR Environment, without compositing.

QUIP is for Panoramic Camera, it's the easier to use. Just create a ground, plane or grid, and apply this shader to it. It doesn't work if the camera is moving, or with stereo camera.

QUIPCam is for Moving Camera. It's a kind of Spherical Camera Mapping to have a very fast 3D integration result. It's a first step to more advanced 3D integration or FX.
Just create a ground, plane or grid, and apply this shader to it. Then, create objects to mimic the real scene (box for building).
You can do very precise work for real FX, or just lowpoly object if you have fast or far camera moves.
It works very well with stereo camera, and could be used for 2D to 3D conversion.

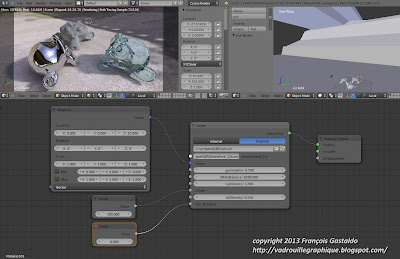

Documentation :
QUIP
environment_file = the ful spherical panorama, HDRI is better. It has to be the same as the one in world environment.

gammaEnv = gamma correction of environment image. Use 1.0 or 2.2 to correct the gamma.

WhiteBalance = White balance correction. Often, the environment lighting (IBL) give a colder look.
Use this value, from 3000 to 15000, to correct the warmness or coldness of ground.

Luminance = correct the darkness or brightness of ground.

ZFade = distance to make a smooth transition to the real environment. Your ground plane should be bigger than this value.
Use it a close as you can to have very smooth (invisible) transition.

AODensity = 0.0 means No Ambient Occlusion, 1.0 = completely dark (black) Ambient Occlusion.


QUIPCam
QUIPCam has two more parameters :
Origin = Center of the Panorama. Using Z is enough, X and Y are not necessary. The bigger is Z, the bigger the Environment will be.
You may track this vector with the position of a Null Object to make it easier to use.

Pan_Rotation = Environment Rotation.


I've Include a quick tutorial after the demo video. It would help to understand how to use QUIP and QUIPCam.

You can download QUIP, and QUIPCam.

Those shaders are made for educationnal purpose only. Use them in production at your own risk.
Closures are for Blender/Cycles. They could need adaptation for your renderer.
If you use one of those shaders, or both, please credit them and me. Thank you.

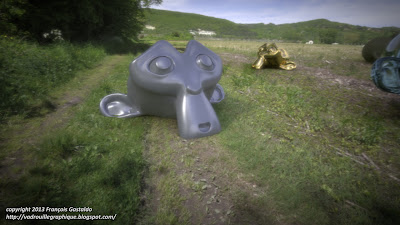

QUIP & QUIPCam OSL Shader from François Gastaldo on Vimeo.

An Excellent Work using Pyla

Just a very good use of PYLA and SSS, with a wonderful model and a very nice picture :

Nana By RC




I'm currentely working on PYLA 1.2, the optimized version of Pyla. I just need to do more test rendering...

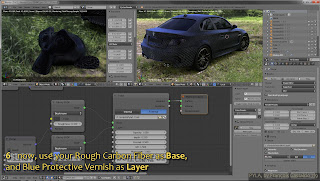

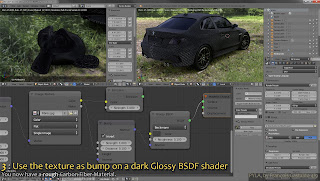

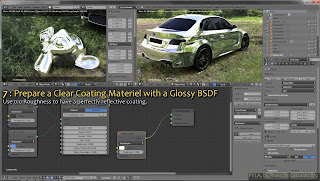

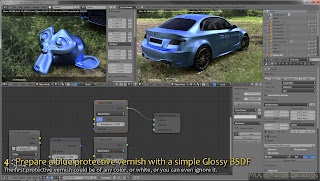

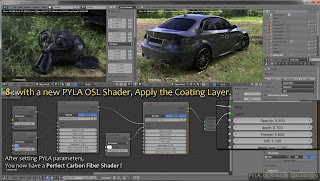

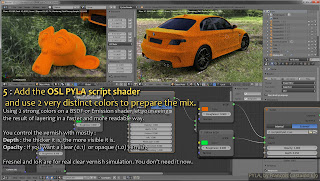

PYLA Layer Shader Carbon Fiber Tutorial

Working with layers in shading is a really powerful way to obtain Physically correct and realistic materials.

Indeed, it's not so easy to know what to do with PYLA !

So, here is a simple tutorial to learn how to use it.

The example is 'How to do a Carbon Fiber Material'.

I hope it would help you to understand how to use PYLA for better shading in your project.























The fiber Texture :


Enjoy !
